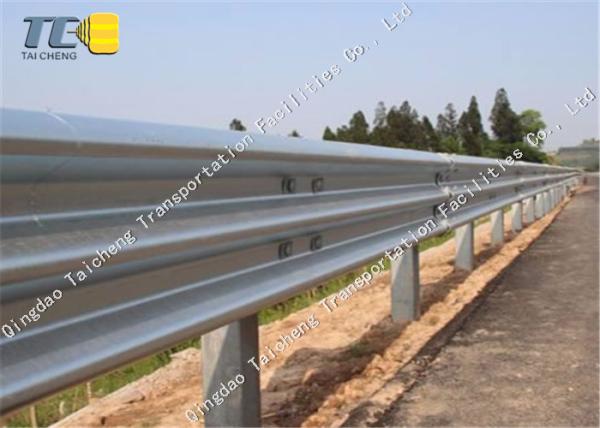

Corrosion Resistance W Metal Beam Crash Barrier Cold Galvanized
Spray
1. Product Description
The wave guardrail is a combined corrugated steel movable guardrail
with a split at the center of the road. The guardrail is composed
of two corrugated steel guardrails and two columns fixedly
sandwiched between the two. The two columns are fixedly clamped.
Between two corrugated steel guardrails.
When the road is in normal operation, the guardrail can be easily
inserted into the pre-installed insertion and extraction holes by
the plugging and unloading column to provide isolation and
protection. At the same time, it is matched with the guardrail belt
on the outer side of the road, neat and uniform, and beautifully
matched.
When the vehicle collides with it, the corrugated steel guardrail
board has good crashworthiness and energy absorption, and it is not
easy to be destroyed, and at the same time it can protect the
vehicle and the passengers.
2. Product Information
Product Name | W Wave Beam Guardrail | Color | White, Blue, Green Or Customer's Request | Size | As Customers' Requirement | Feature | Easily Assembled, Excellent Weather Resistance, Salt Spray
Resistance | MOQ | 50 Meter / Meters | Usage | Road,highway,Public Place,Community,School | Service | OEM,ODM And Design Are Welcome |
|
|
3. Surface treatment
The surface treatment of the corrugated beam guardrail can be
divided into the following types:
1. Hot-dip galvanizing--Hot galvanizing is the most common surface
treatment method for high-speed highways.
2. Cold galvanized spray - cold galvanized spray is generally used
in rural or mountain roads, this surface treatment is lower than
the cost of hot galvanizing, the appearance is also more beautiful.
3. Hot-dip galvanizing spray - hot-dip galvanized spray is the best
of the three corrosion resistance, this surface treatment is mostly
used in a relatively environmentally harsh environment, widely used
in China's Heilongjiang, northern Liaoning.
4. Specifications And Weight
(1) Fence plate: plate length × plate width × wave height × plate
thickness
A, double wave guardrail : 4320 × 310 × 85 × 3.0 theoretical weight
49.16 Kg
4320×310×85×4.0 theoretical weight 65.55 Kg
B, three wave guardrail : 4320 × 506 × 85 × 4.0 theoretical weight
102 kg
(2) Column :( Diameter × wall thickness × length )
: 114×4.5 × length theoretical weight 12.16 Kg
140×4.5 × length theoretical weight 15.06 Kg
Column Length : 1m, 1.2m, 1.25m, 1.55m, 1.85m, 1.95m, 2m, 2.15m, etc.
(3) Anti-blocking block : 196×178×200×3.0/4.0 Each weight is about 2.5kg, which is used
together with the nine-hole plate.
(4) Column cap : 114mmx100mm Each weighing about 0.5kg
:140mmX150mm each weighing about 0.6kg
(5) Bracket : 300 × 70 × 4mm / 4.5mm Note: Matching with ten-hole plate, each
weighing about 0.8kg.
(6) End : General split side (R160), and central belt (R250) two models,
commonly used thickness of 3mm.
Special types of other models can be arranged at any time according
to customer requirements.
(7) Beam gasket (square gasket)
Material: Q235, high quality steel plate.
Specifications: 76 × 44 × 4 weighs about 0.08kg
It is used for brackets (anti-blocks) and guardrails, and for
connecting screw holes.
(8) Bolt : M16×170 (150) The column is connected with the anti-blocking
block and the bracket;
M16×42 (40) anti-blocking block, bracket and board connection;
M16×35 (32.5) board is connected to the board;

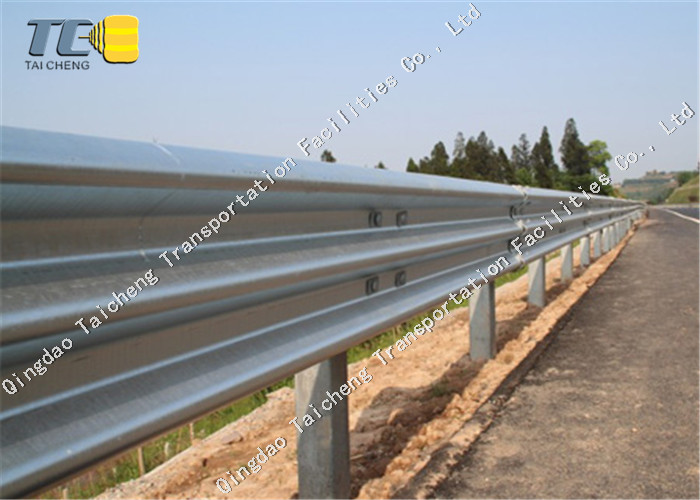

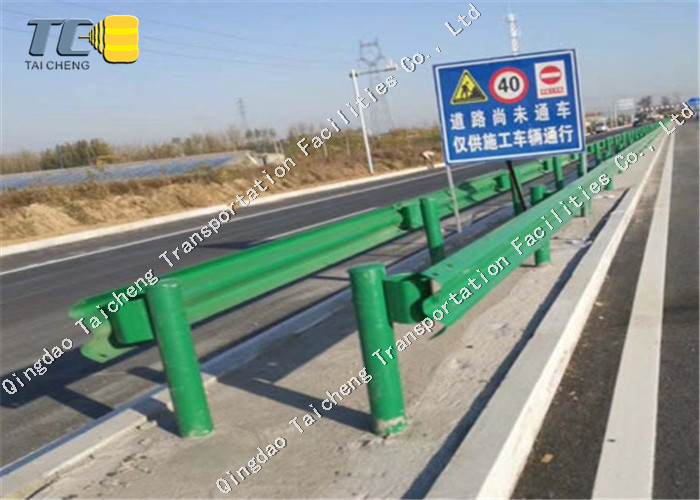

5. Our installation
6. packing
7. FAQ
1. You are manufacture factory or trading company?
We are manufacture factory. you are warmly welcomed to vist us per
your convenience.
2. Does your company can produce other specification
Yes, we can manufacture the fence according to your request .
3. What about the delivery times?
About 15 days after getting your prepayment.it will be according to
your quatity.
Customized order may need longer time.
4. What is your payment terms?
T/T , L/C at sight, cash.
5. Did you check all the product before leaving your factory?
Yes. All production line have adequate quality control.
